Feral Inline Sample Project

Inline Sample Project​

We created a sample project that includes multiple processes and examples. The sample project uses Symfony as a framework and has the ability to run a process from the console and also from the browser via a container.

Step 1: Visit the GitHub project​

The GitHub project can be found at https://github.com/cybermantix/feral-inline-sample.

Step 2: Sample Processes​

Available Example Processes
Here is a list of the processes available in the sample app

  • api_data_import
  • random_evaluation
  • simple_math_with_context
  • simple_math
  • system_random
  • test_process

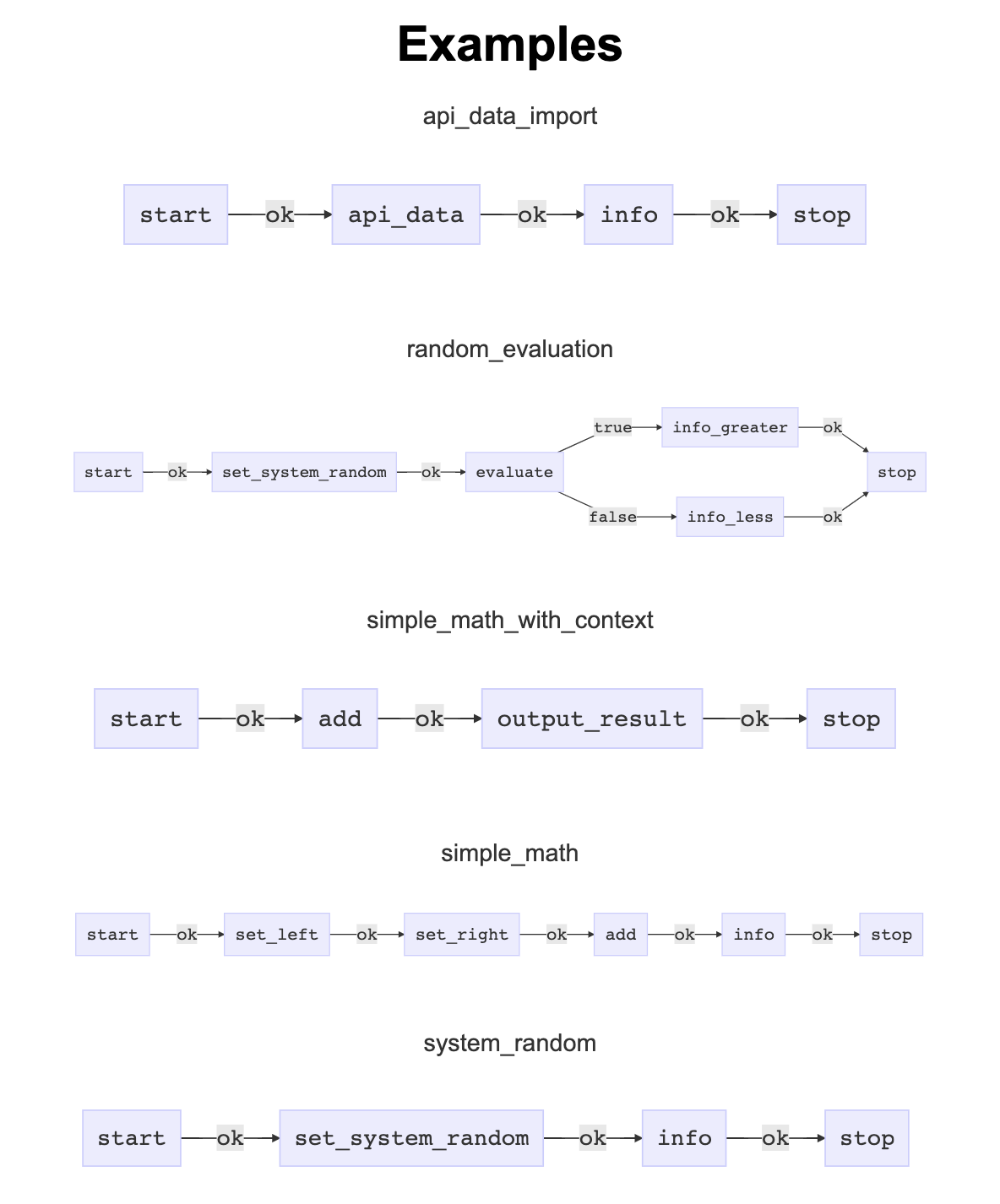

Sample Process Graphs

Step 3: Run processes from the command line​

bin/console feral:run  random_evaluation -vv

Output

Process Key: random_evaluation
-----------
  CONTEXT
-----------
Context:  was not passed in.
-----------
  PROCESS
-----------
[info] Starting a process with 6 nodes.
[info] Processing Node start
[info] Processing Node set_system_random
[info] Processing Node evaluate
[info] Processing Node info_greater
[info] The system random is 0.99985052412369 and is GREATER than the test value 0.5
[info] Processing Node stop
[info] Process Complete
------------
  FINALIZE
------------
Process 'random_evaluation' Complete.

Step 4: Run the processes from the controller​

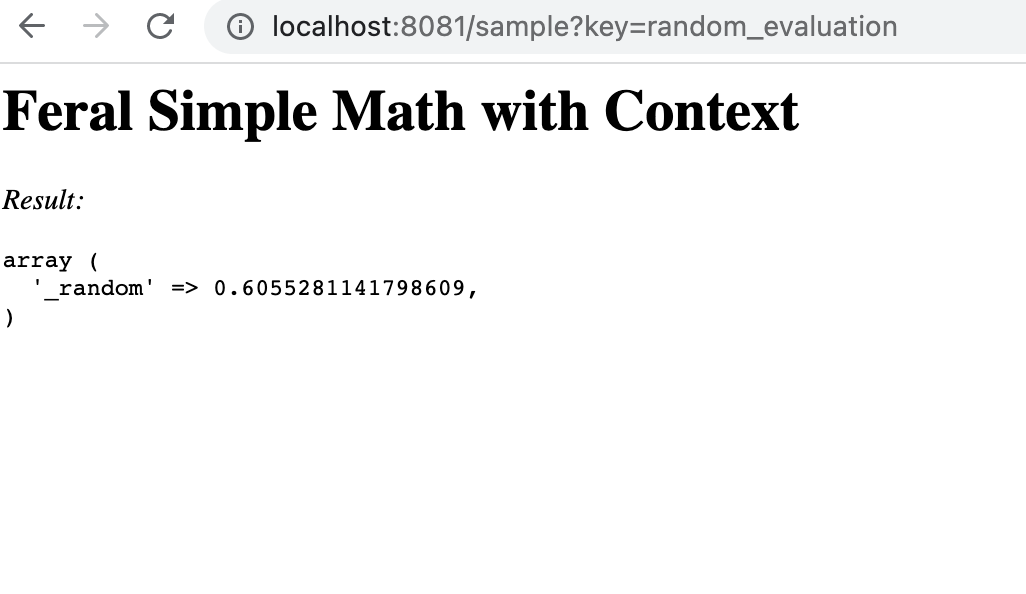

In your browser, visit the your development web server or container http://localhost:8081/ Click on the title of the process random_evaluation. Output of the random evaluation process

The power of a process​

Note the exact same process can be run via the command line console or in a controller in a browser. This allows you to write the process once and run it with multiple drivers like the console or web controller. Feral Process Profiler
